2D Floor Plans include construction drawing sets, 2D CAD floor plans, sections and elevation drawings generated from intelligent point clouds generated from laser scanning. These set of 2D CAD drawings help clients with asset inventory, planning, constructions, and other activities. Our team has supported numerous owner-operators, as well as engineering and construction firms.

Our team utilizes an integrated project workflow that provides our customer with automated notifications each time a milestone is achieved en route to project completion. In a recent project for a retail food chain with 1,200 U.S. locations, we provided a consistent 3-day turnaround at an internationally competitive price. With EiCAD's rigorous QA/QC, project management, and software tools, we exceeded customer expectations for quality, schedule and pricing.

Below are samples from representative projects.

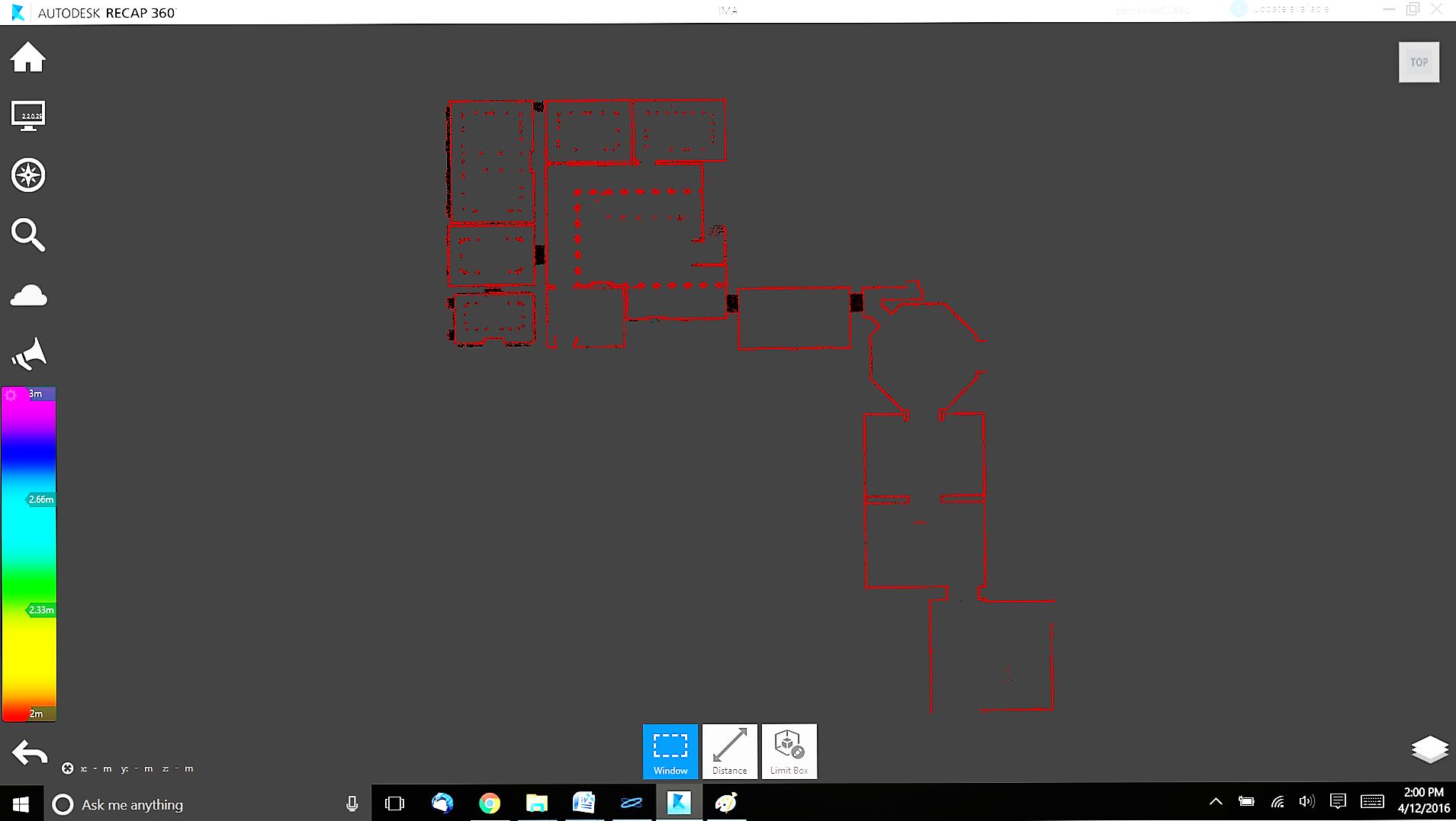

 point cloud data basis for 2D Floor plan

point cloud data basis for 2D Floor plan

 point cloud data basis for 2d section

point cloud data basis for 2d section

 point cloud data basis for 2d elevation

point cloud data basis for 2d elevation
